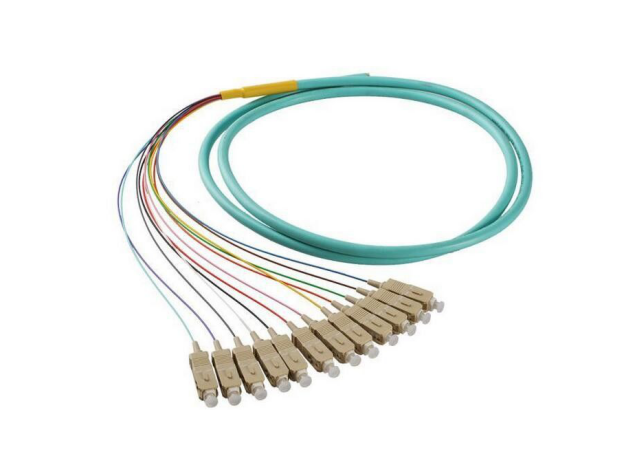

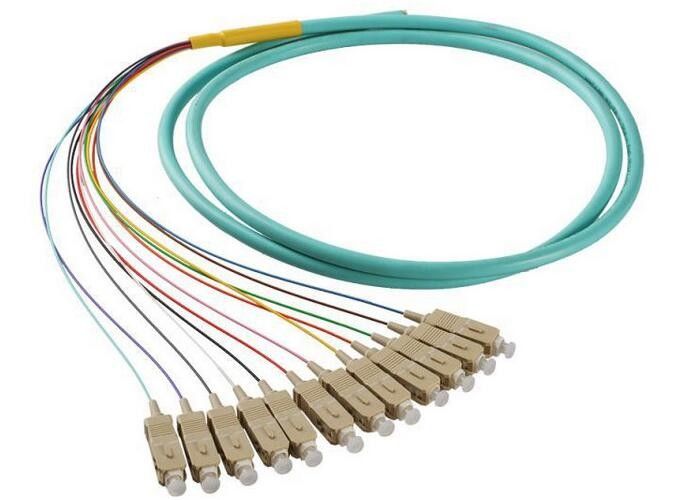

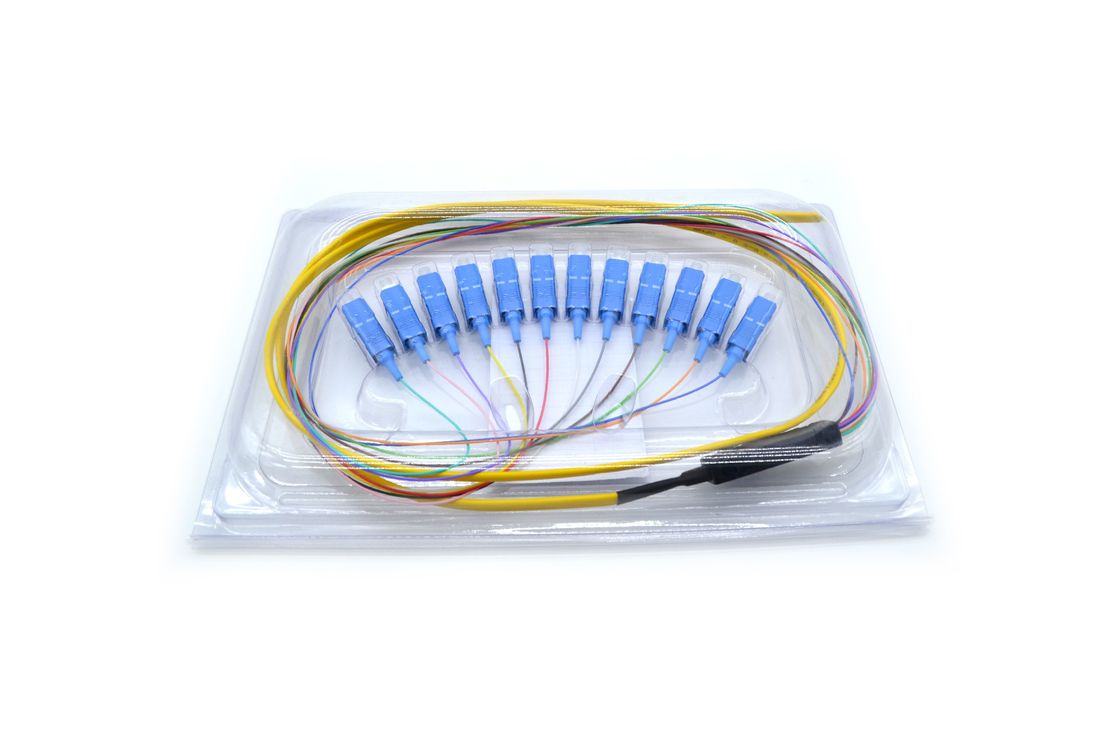

Fiber Optical Pigtail 12 fiber SC/UPC MM
Description:
Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The bunch fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.
Features:
Low Insertion Loss and High Retum Loss
Excellent Repeatability and Changeability
Simplex and Duplex Available
Ceramic Ferrules
Riser, Plenum & LSZH cable option
Optical performance 100% factory tested
Application:
Telecommunication Networks
CATV Networks
Active Device Termination
Local Area Networks
Specification:
|
Parameter |
Single Mode |
Multi Mode |
|||
|
Basic |
Fiber connector |
FC, SC, LC, ST, MU, MTRJ, MPO |
|||
|
Ferrule End-face |
PC |
UPC |
APC |
UPC |
|
|
Insertion Loss |
≤0.2dB |
≤0.2dB |
≤0.3dB |
≤0.3bB |
|
|
Return Loss |
≥50dB |
≥55dB |
≥60dB |
≥35dB |
|
|
Ceramic Ferrule Specification |
125.5um concentricity deviations:<=1um |
127um concentricity deviations:<=3um |
|||
|
Suitable Fiber |
9/125um |
50/125um,62.5/125um |
|||
|
End-face Geometry |
Radius of Curvature |
7~25mm |
5~12mm |
N/A |
|
|
Fiber Protrusion |
≤50nm |
≤100nm |
N/A |
||
|
Fiber Under Cut |
≤100nm |
≤100nm |
N/A |
||
|
Apex offset |
≤50um |
||||
|
Mechanical |
Exchangeability |
≤0.2dB |
|||
|
Salt Spray |
≤0.1dB |
||||
|
Drop |
≤0.2dB(1.5M, 5 drops) |
||||
|
Vibration |
IL ≤0.2dB(550Hz, 1.5mm) |
||||
|
Repeatability |
≤ 0.1dB(1000 times) |
||||
|
Durability |
> 1000 times |
||||
|
Operating Temperature |
-40°C ~ +85°C |
||||
Ordering information:
|
Boot |
Connector |
Fiber Type |
Cable number |
Ferrule |
Length |
Color |
|
0.9mm 2.0mm 3.0mm |
FC LC SC ST MU D4 MTRJ MPO DIN E2000 |
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber Ribbon |
PC APC UPC |
1m 2m 3m 4m 5m ...... Customized |
Aqua Black Biege Blue Gray Orange White Yellow |
