Description:

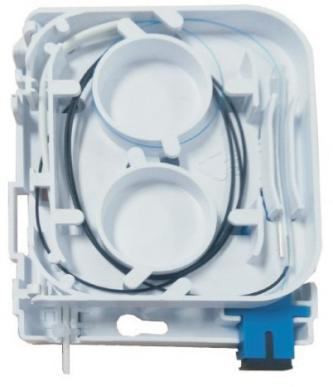

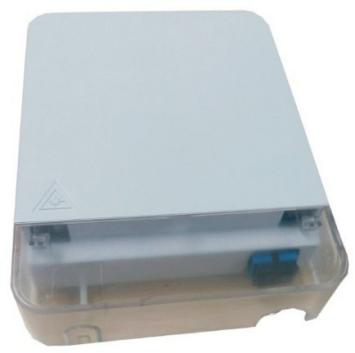

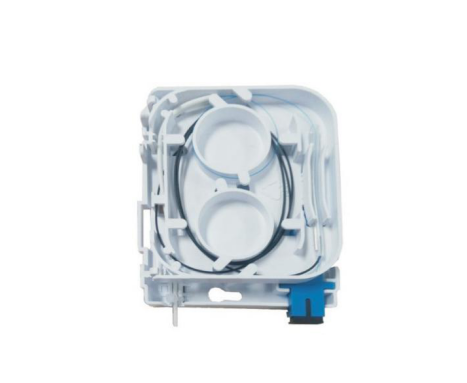

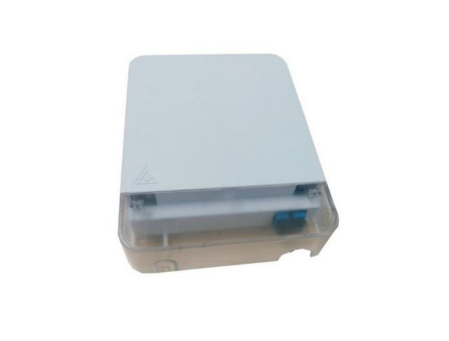

This type fiber rossette box is able to hold up to 1 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor pplication.It integratesfiber splicing,termination, storage and cable connection in one solid protection box
Features:
Dust-proof design with IP-45 Protection level.
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Suitable for the fusion splice or mechanical splice.
Embedded type surface, easy for installation and removal.
1 ports cable entrance for patch cable.
Specification:
|
Item |
Parameters |
Remark |
|
Material |
PC+ABS |
|
|
Color |
White |
|
|
Size |
115*86*25mm |
|
|
Scope of application |
3.0*2.0mm drop cable or indoor cable |
|
|
Fiber type |
SM&MM |
|
|
Operating Temperature（℃） |
-40～+85 |
|
|
Connecting adapter |
SC & LC |
|
|
Max capacity |
SC 1port or LC 2ports |
|
|
Insertion loss |
<0.2dB |
|
|
Return loss |
>50dB(UPC), >60dB(APC) |
|
|
Weight |
0.1kg |
|
