APPLICATIONS |
FEATURES |
|
● Instrumentation |
● High precision alignment |
|
● Data processing networks |

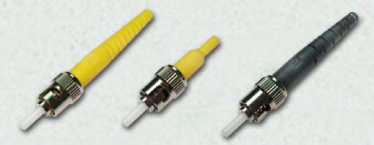

● Boots in a variety of colors |
|
● Local Area Networks (LANs) |
● Ferrule end surface predomed |
|
|
● Nickel plated brass body |
|
|
● Free-floating ceramic ferrule |
|
|
● Bayonet style housing for easy termination |
|
|
● Low insertion loss and back reflection loss |
AVAILABILITY

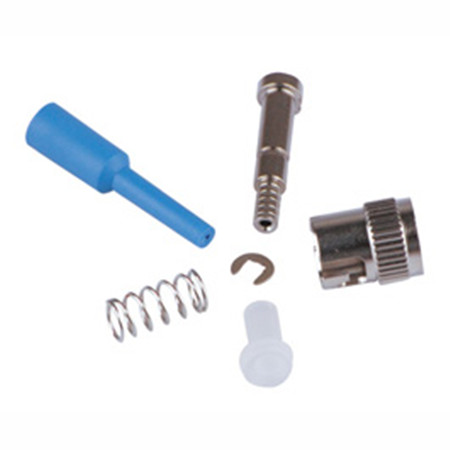

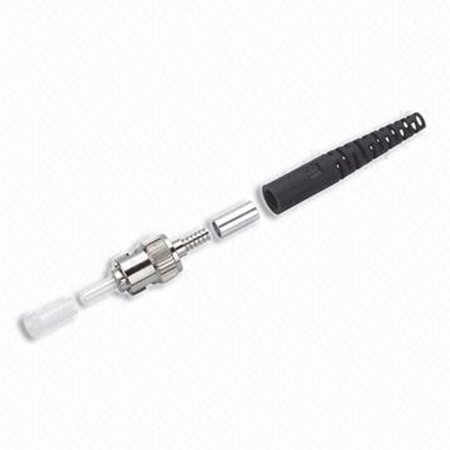

● The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
● Housing kits without ferrule are available.
SPECIFICATIONS
|
|
Single mode |
Multimode |
|
Insertion Loss |
≤0.20dB |
≤0.25dB |
|
Return Loss |
≥55 dB (PC) |
|
|
Durability |
<0.20 dB typical change, 1000 matings |
|
|
Operating Temperature |
-40 to + 85°C |
-40 to + 85°C |
|
Ferrule Hole Sizes |
125.0+1/-0ìm, Concentricity: ≤1.0ìm |
125ìm, Concentricity: ≤3ìm |
|
125.3+1/-0ìm, Concentricity: ≤1.0ìm |
127ìm, Concentricity: ≤3ìm |
|
|
125.5+1/-0ìm, Concentricity: ≤1.0ìm |
128ìm, Concentricity: ≤3ìm |
|
|
126.0+1/-0ìm, Concentricity: ≤1.0ìm |
|
