PLC SplitterYou are here: Home > Products > PLC Splitter > Cassette Type PLC Splitter

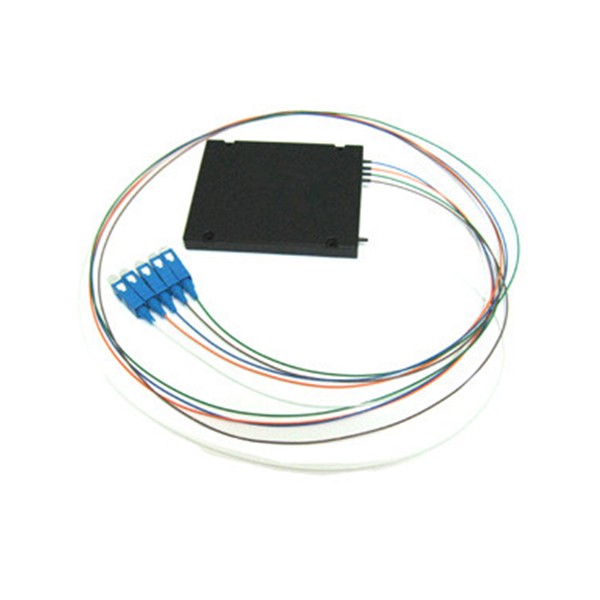

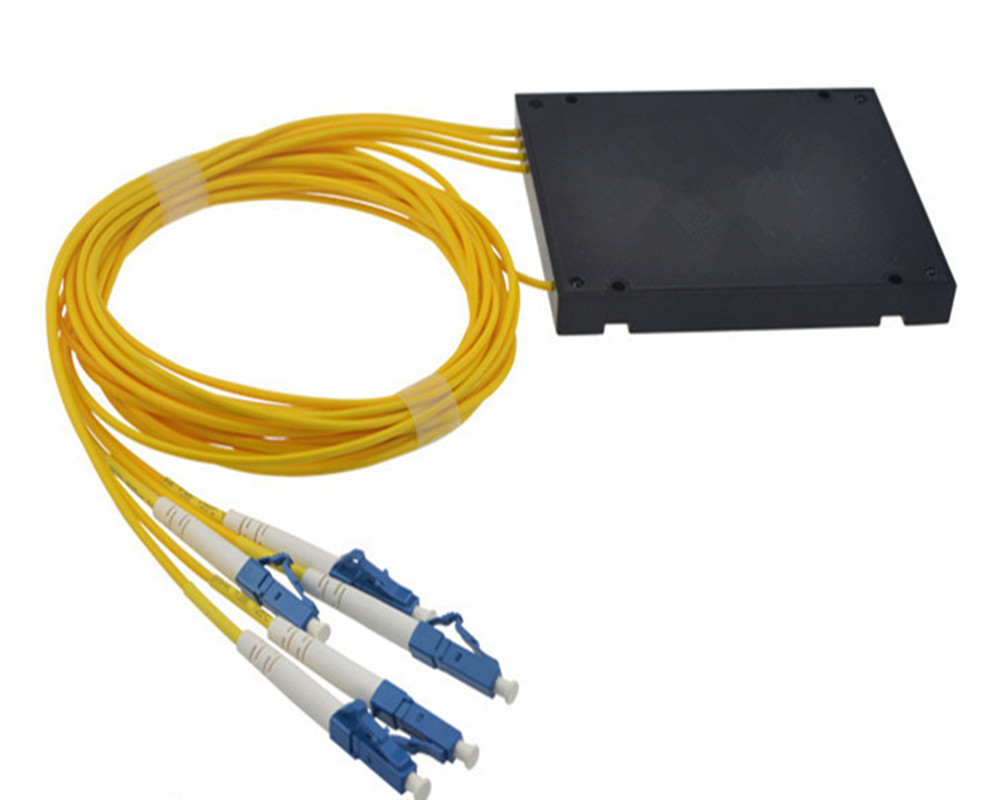

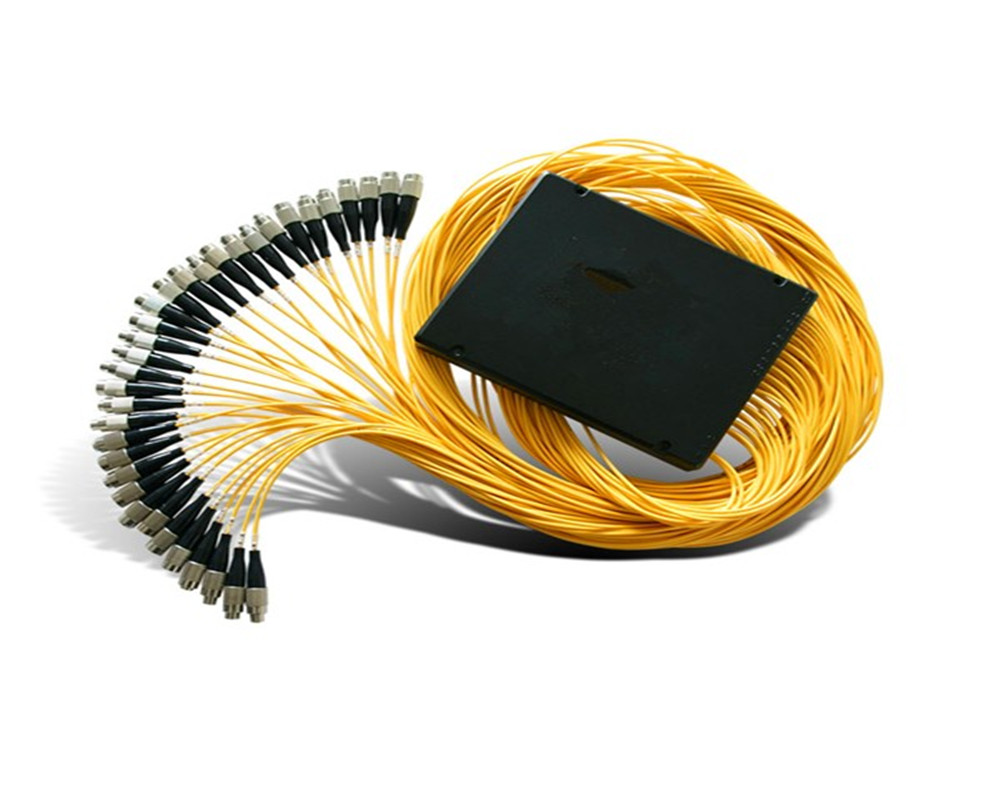

Description:
Planar Lightwave Circuit Splitter (PLC Splitter) is based on planar waveguide optical power distribution products, with low insertion loss and polarization dependent loss, small size, wide operating wavelength range, high channel uniformity and good characteristics, generally used in passive optical network (EPON, BPON, GPON, etc.) to realize the optical power splitting

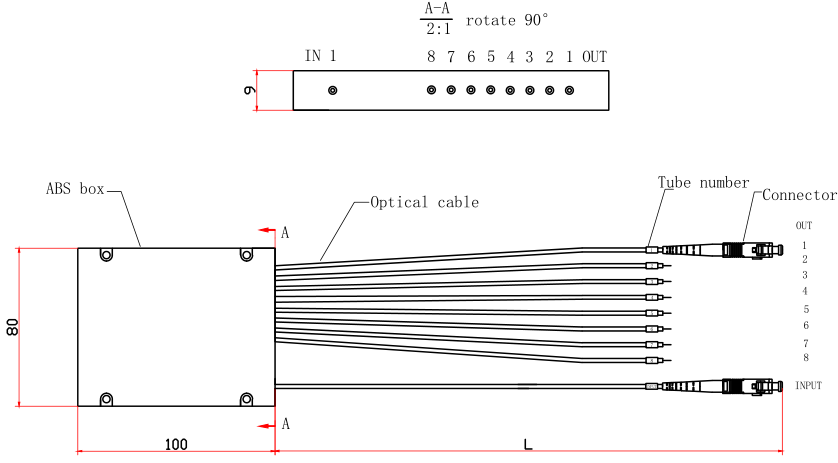

Structure diagram:
Features:
Good Uniformity
Not Sensitive to wavelengths
Low Polarization loss
Reliable
Smaller size
General requirements:
|
Category |
Specification |
Remarks |
|
|
Fiber Type |
G657A or G652 |
|
|
|
The Tube |
Outer Diameter |
2.0mm |
or 3.0mm |
|
Material |
PVC |
Or LSZH |
|
|
Colour |
Yellow |
|
|
|
Length |
L1±5mm |
L≥0.3M |
|
|
Connector type |
SC、FC、LC |
|
|
|
ABS-Box |
100*80*9mm |
|
|
|
Number tube NO: |
IN/Input No./Output |
|
|
Optical performance:
|
Category |
Specification |
Remarks |
||
|
Working Wavelength |
NM |
1260～1650 |
|
|
|
Test Wavelength |
nm |
1310&1490&1550 |
|
|
|
Insertion Loss |
exclude connector |
dB |
≤10.5 |
|
|
With connector |
dB |
≤11 |
|
|
|
Channel Uniformity |
dB |
≤0.8 |
|
|
|
Polarization Dependent Loss-PDL |
dB |
≤0.2 |
|
|
|
Directivity |
dB |
≥55 |
|
|
|
Return Loss |
dB |
≥55 |
|
|
|
Operating Temperature |
℃ |
-40～+85 |
|
|

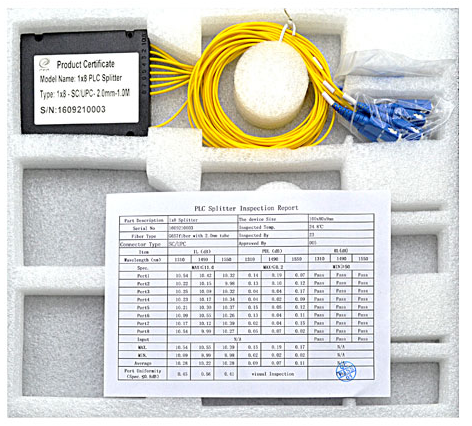

Package:
Product packing：Foam
|
|
Size(CM) |
35x30x3.5 |
|
|
QTY(PCS/Foam) |
3 |
||
|
N.W(KG/PCS) |
With Connector |
0.12 |
|
|
Without Connector |
0.09 |
||
Inner packing
|
|
Size(CM) |
35x30x8 |
|
|
QTY(PCS/ Box) |
6 |
||
|
N.W(KG/Box) |
With Connector |
0.72 |
|
|
Without Connector |
0.54 |
||
Outer Packing
|
|
Size(CM) |
71x37x32 |
|
|
QTY(Inner/Outer) |
10 |
||
|
QTY(Pcs/Box) |
60 |
||
|
N.W(KG/Box) |
With Connector |
7.2 |
|
|
Without Connector |
5.4 |
||
|
G.W(KG/Box) |
With Connector |
11 |
|
|
Without Connector |
9 |
||
