PLC SplitterYou are here: Home > Products > PLC Splitter > Bare Type PLC Splitter

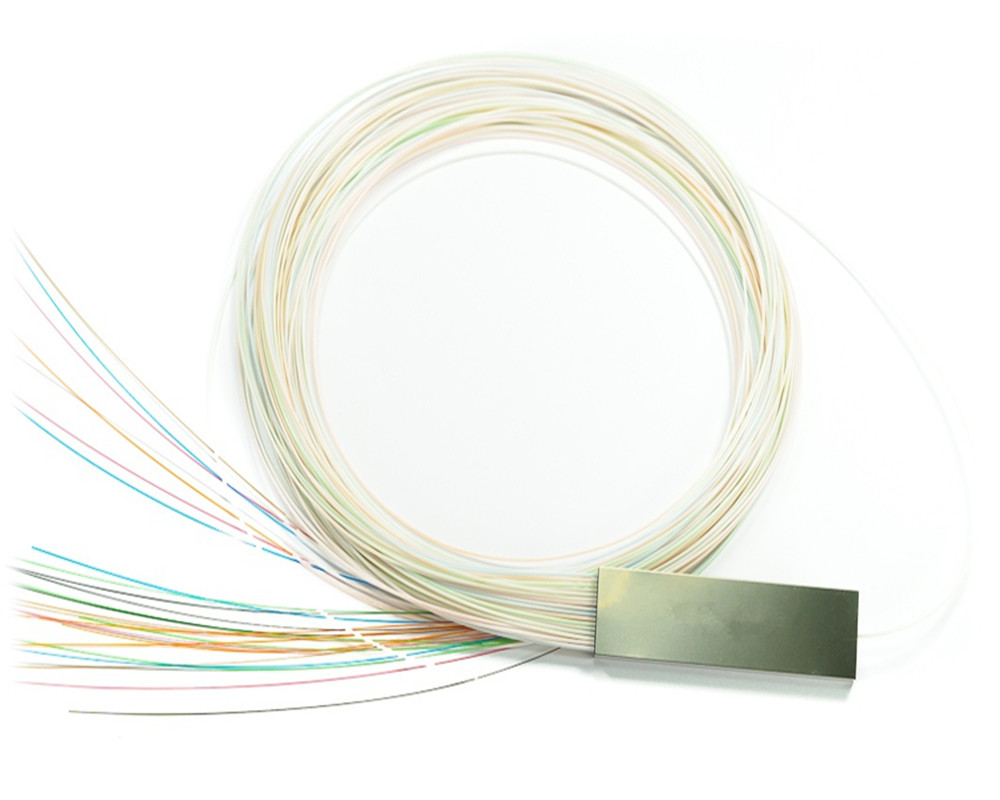

Description:
Fiber optic PLC splitter is an optical power device based on quartz plate planar of light wave technology, which is widely used in local side or termination of Passive Optical Network (EPON, BPON, GPON etc.) for splitting of optical signal. It offers superior optical performance, high stability and high reliability; meet various application requirements in different environments.

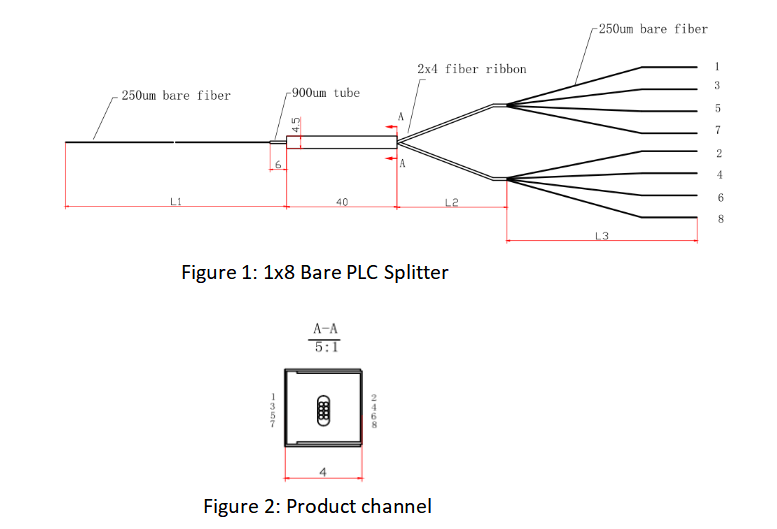

Structure diagram:
General requirements:
|
Category |
Specification |
Remarks |
|
|
Fiber Type |
G657A or G652 |
|
|
|
The Tube |
Outer Diameter |
900um |
|
|
Material |
Hytrel |
|
|
|
Colour |
Translucentc |
|
|
|
Length |
6±1mm |
|
|
|
Connector type |
None |
|
|
|
Number tube NO: |
None |
|
|
Fiber color of each channel:
|
|
Port1&2 |
Port3&4 |
Port5&6 |
Port7&8 |
|
color |
Blue |
Orange |
Green |
Brown |
Optical performance:
|
Category |
Specification |
Remarks |
|
|
Working Wavelength |
NM |
1260～1650 |
|
|
Test Wavelength |
nm |
1310&1490&1550 |
|
|
Insertion Loss |
dB |
≤10.5 |
|
|
Channel Uniformity |
dB |
≤0.8 |
|
|
Polarization Dependent Loss-PDL |
dB |
≤0.2 |
|
|
Directivity |
dB |
≥55 |
|
|
Return Loss |
dB |
≥50 |
|
|
Operating Temperature |
℃ |
-40～+85 |
|
Package:
1. Blister Box Packing
|
|
Size(CM) |
20.7x9.2x1.2 |
|
QTY(PCS/Box) |
5 |
|
|
N.W(KG/PCS) |
0.0055 |
|
|
G.W(KG/PCS) |
0.0475 |
2. Gift Box Packing(Inner packing)
|
|
Size(CM) |
21x9.4x1.5 |
|
QTY(Blister Box/Girt Box) |
1 |
|
|
N.W(KG/Box) |
0.0275 |
|
|
G.W(KG/Box) |
0.0645 |
Outer Packing
|
|
Size(CM) |
43x41x40.5 |
|
QTY(Gift Box/Box) |
200 |
|
|
QTY(Pcs/Box) |
1000 |
|
|
N.W(KG/Box) |
5.5 |
|
|
G.W(KG/Box) |
14 |
